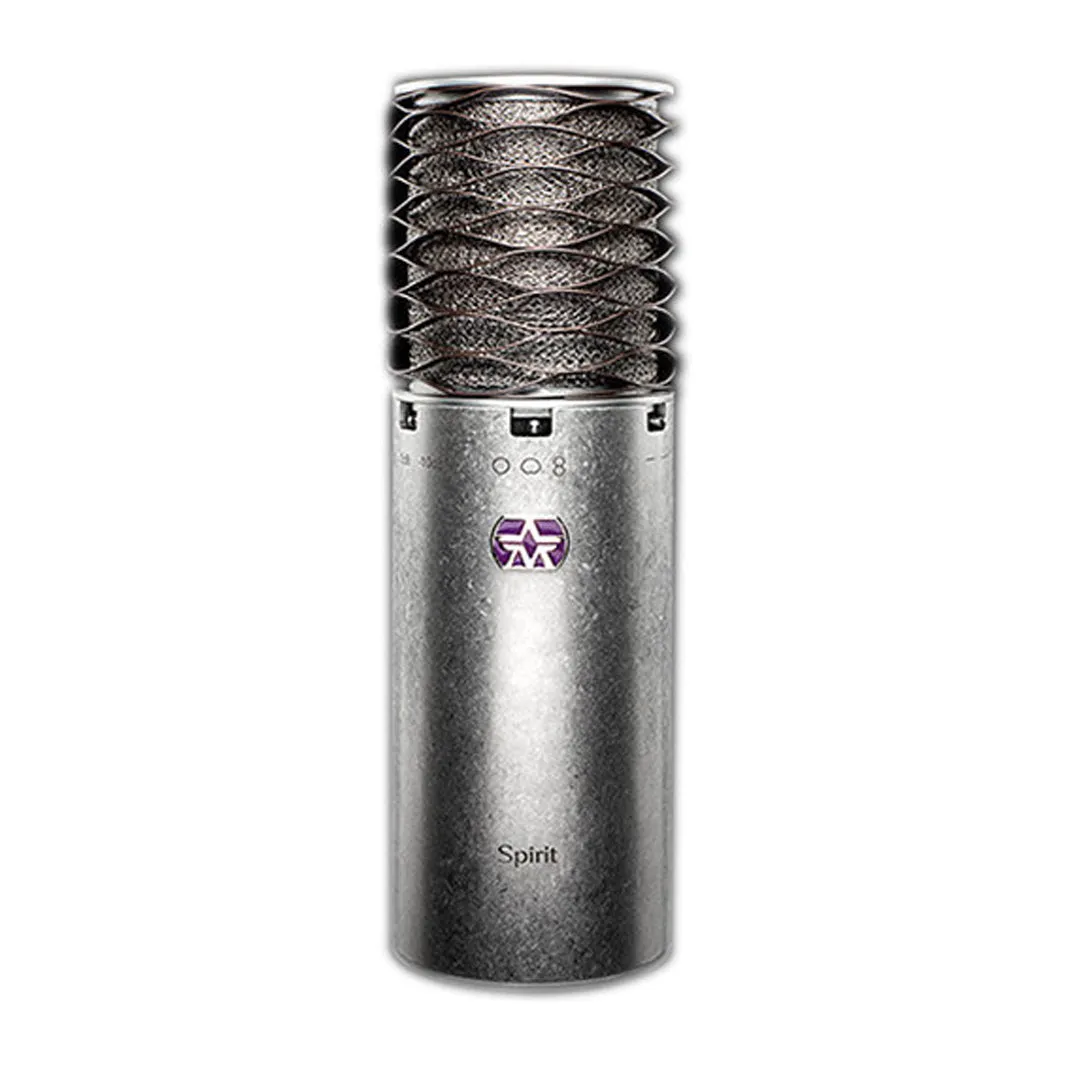

The Aston Spirit is a high-performance, switchable pattern, microphone utilising a 1" gold evaporated capsule. A switch on the mic body selects from Omni, Cardioid or Figure-of-Eight polar patterns. It is versatile enough to use with most instruments and excels on acoustic guitar and vocals. Its hand-selected capsule is teamed with high-end transformer balanced circuitry using only the best components.
The Spirit is designed to deliver a beautifully open sound with sparkling harmonics. This highly accurate microphone gives a stunningly natural and transparent recording, capturing all the detail in the high range but without adding the harshness that some condenser microphones seem to have.
Specifications:
- Transducer Type: Condenser
- Acoustic Operating Principle: Pressure Gradient
- Frequency Response: 20Hz ? 20kHz ( /-3dB)
- Equivalent Noise Level: 14dB A-Weighted
- Sensitivity at 1kHz into 1kohm: 23.7mV/Pa
- Maximum SPL for THD 0.5%: 138dB
- Signal-to-Noise Ratio (rel. 94dB SPL): 80dB A-Weighted
- Polar pattern: Omni/Cardioid/Figure-of-Eight
- Pad Switches: -20dB/-10dB/0dB
- Low-Cut Filter: 80Hz
*48 Volt Phantom power ( /- 4 Volts) is required for operation
